  • Snsek-SZ-SCG20 Mouse Grip Strength Tester

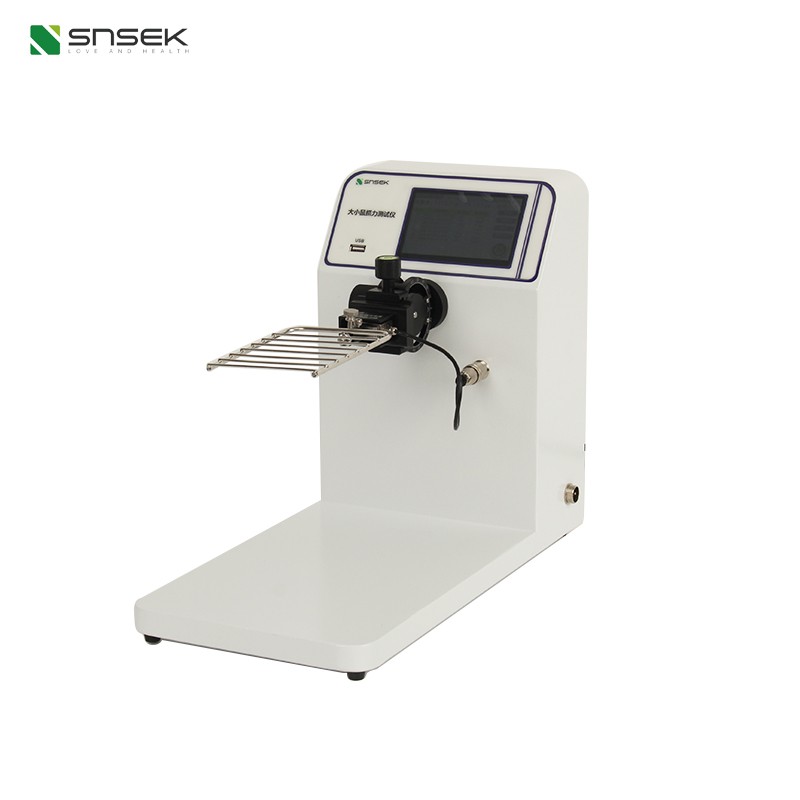

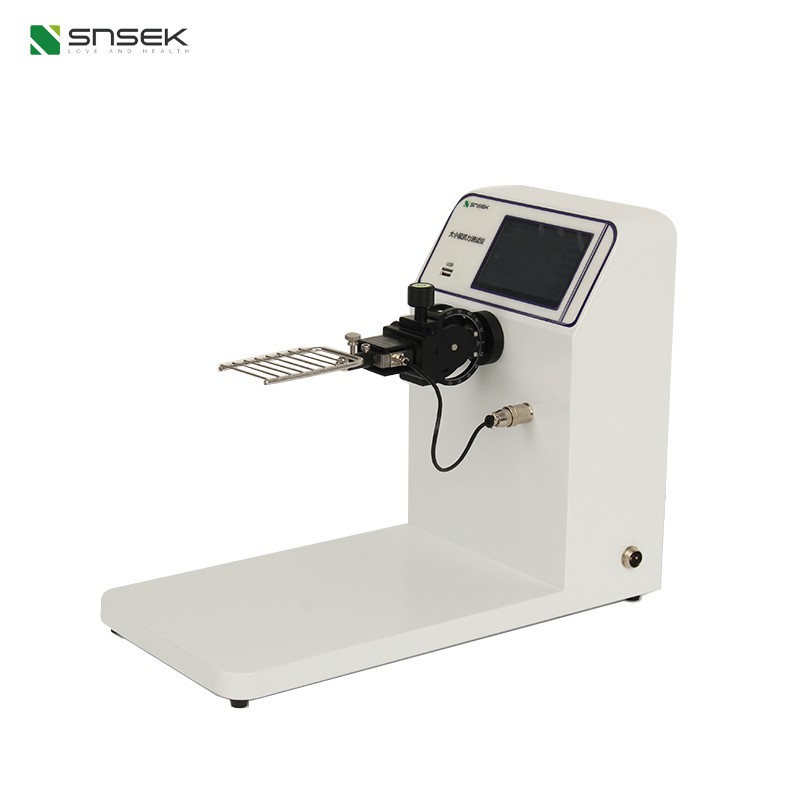

Snsek-SZ-SCG20 Mouse Grip Strength Tester

Brand: Penncentury SNSEK


Model:Snsek-SZ-SCG20

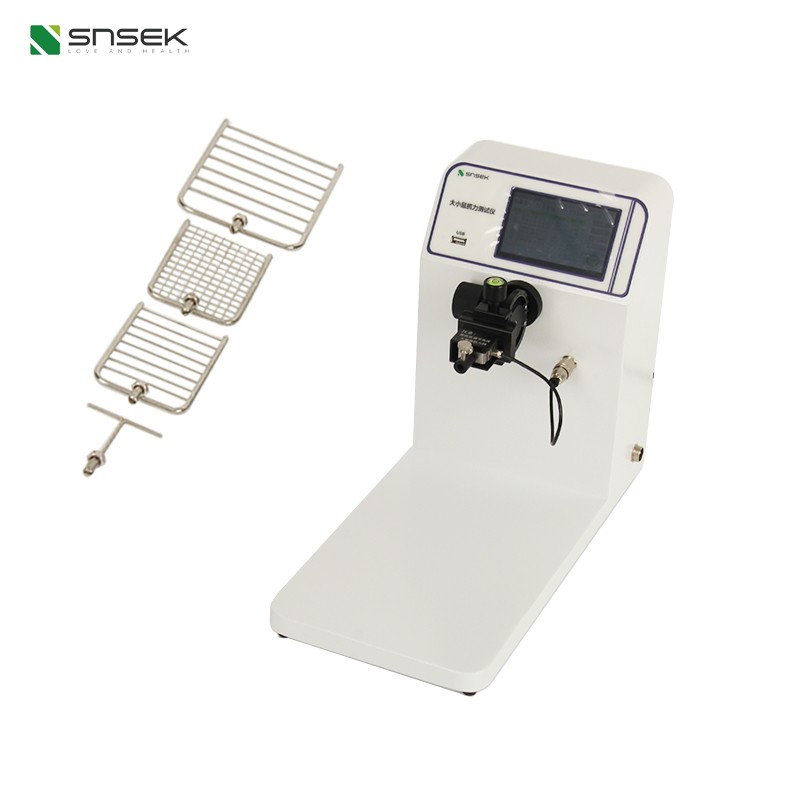

The rat and mouse grip strength meter has a novel shape, an adjustable grip net angle, a 4.3-inch LCD touch screen, automatic storage of tension values, and simultaneous display of g (grams) and N (newtons). This device tests the grip strength of rats and mice in order to evaluate the effects of drugs, poisons, muscle relaxants, central nervous system inhibitors, stimulants, etc. on the limb strength of animals. It can also identify the degree of aging, nerve damage, bone damage, muscle damage, ligament damage and recovery of animals. This is an instrument with a wide range of uses. Due to its simple operation, easy use, clear indicators and strong specificity, it is widely used by domestic and foreign scientific researchers and has achieved good experimental results. The instrument uses different grip plates for rats and mice, which are suitable for claws of different sizes, and can measure the real and objective grip strength of animals. The instrument has the function of automatically calculating the mean, which can minimize the reading error and ensure the accuracy of the experiment.


Parameters

Description

Maximum acquisition range

2000g, 20N

Dimensions (SIZE)

400x200x310mm

Screen size

4.3-inch LCD touch screen, resolution 800X480 IoT type

Measurement accuracy

0.1g, 0.001N

Grip net size

Mice 80X60mm, rats: 120X 160mm

Sensor angle adjustment range

±90°

Maximum value hold function

Maximum value display, automatic save and reset;

Unit display

N (Newton), g (gram), two units are displayed and stored at the same time,

Display brightness

Adjustable, touch buzzer on and off can be freely set;

USB data export function

With, format excel file

Communication

The device can communicate with miniTR, used to display waveforms

Net weight (WEIGHT)

About 4kg
