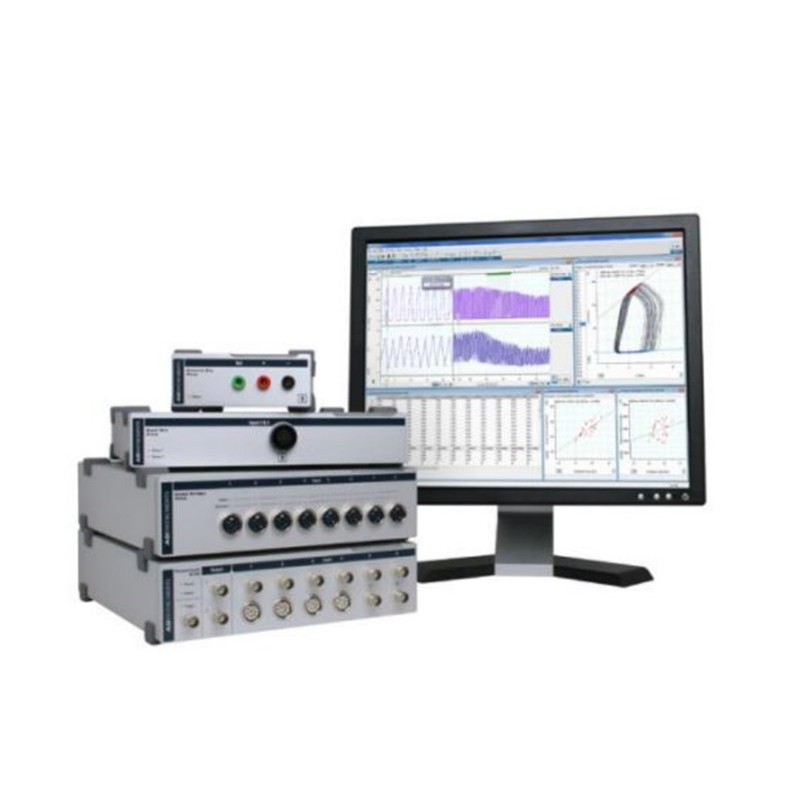

Snsek-SMMS-450 In vitro microvascular tension measurement system

Brand: Penncentury SNSEK



Model: SMMS-450


Fields of Application


The system is primarily used for the study of the basic physiological functions of vascular smooth muscle and endothelial cells, including the investigation of endothelial relaxing factors (such as NO and H2S), neurotransmitters, and ion channels. It is also employed in the study of pathophysiological mechanisms in cardiovascular diseases such as hypertension, atherosclerosis, d0iabetes, metabolic disorders, and aging. Additionally, the system is used for screening vasoactive drugs, generating dose-response curves, and investigating pharmacological mechanisms. Common experimental samples include the mesenteric artery, coronary artery, cerebral artery, renal artery, pulmonary artery, bronchus, carotid artery, thoracic aorta, femoral artery, lymphatic vessels, and various other large and small arteries, as well as ring-like tissue samples.




Parameters

Description

Device screen size

6.8-inch LCD touch screen human-computer dialogue

Number of channels

4 channels, independent temperature adjustment

Specimen clamp adjustment direction

XYZ three-dimensional adjustment

Applicable sample size

Diameter > 50μm

Bath specifications

Diameter 40 mm, depth 10 mm

Bath material

Stainless steel

Bath capacity

10 ml

Bath waste suction

Automatic, flow rate 70ml/min

Bath air intake

Needle valve, independent control

Tension range

500mN or 50g

Tension accuracy

0.1mN or 0.01 g

Temperature setting range

Ambient temperature -45°C

Temperature accuracy

0.1

Voltage

100-240 V

Operating ambient temperature

15-30
