Brand: Penncentury SNSEK
Model: CRD220

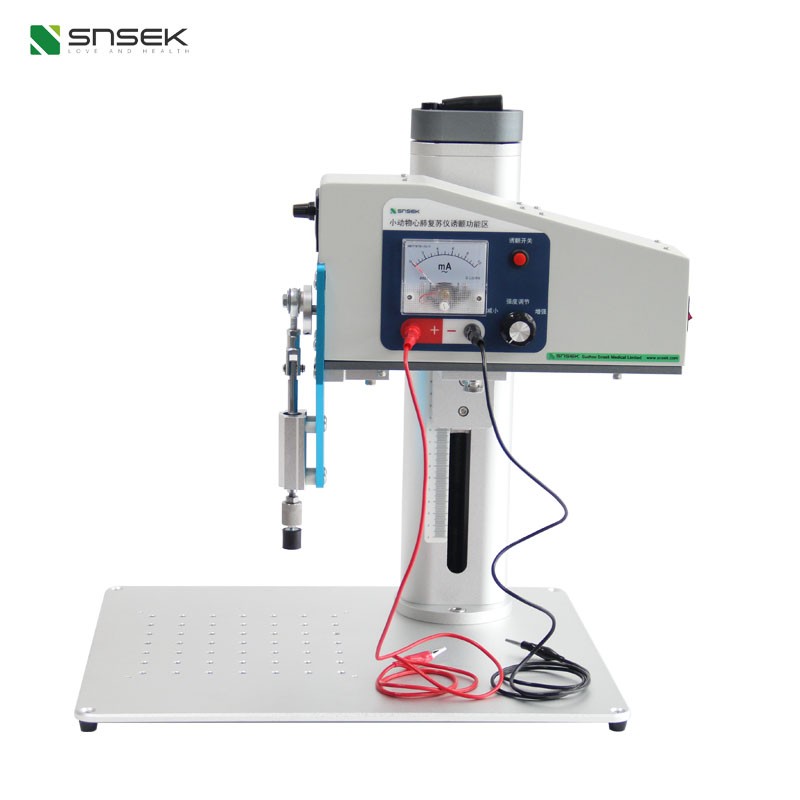

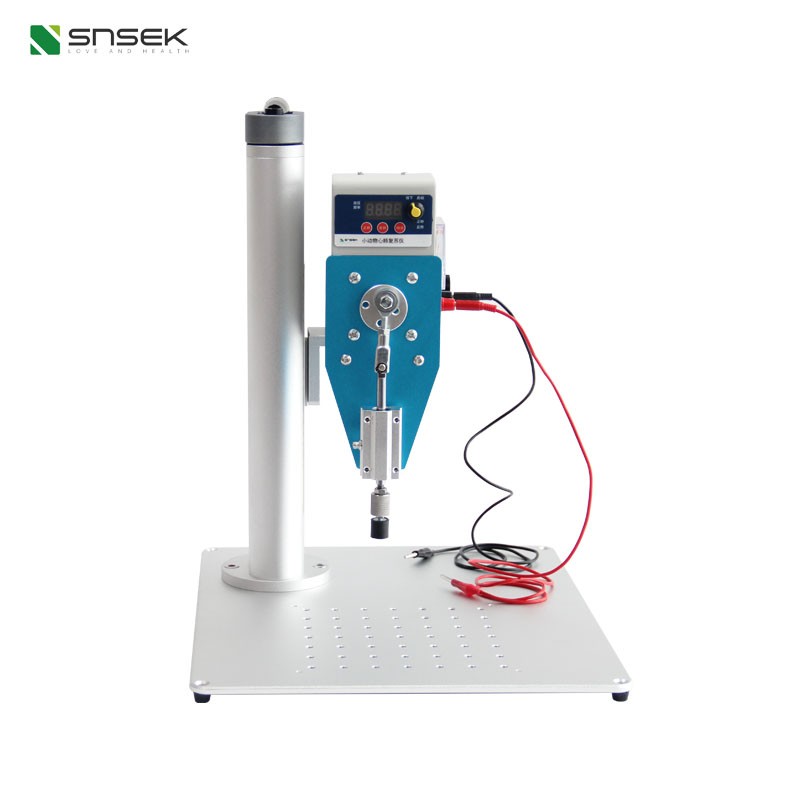

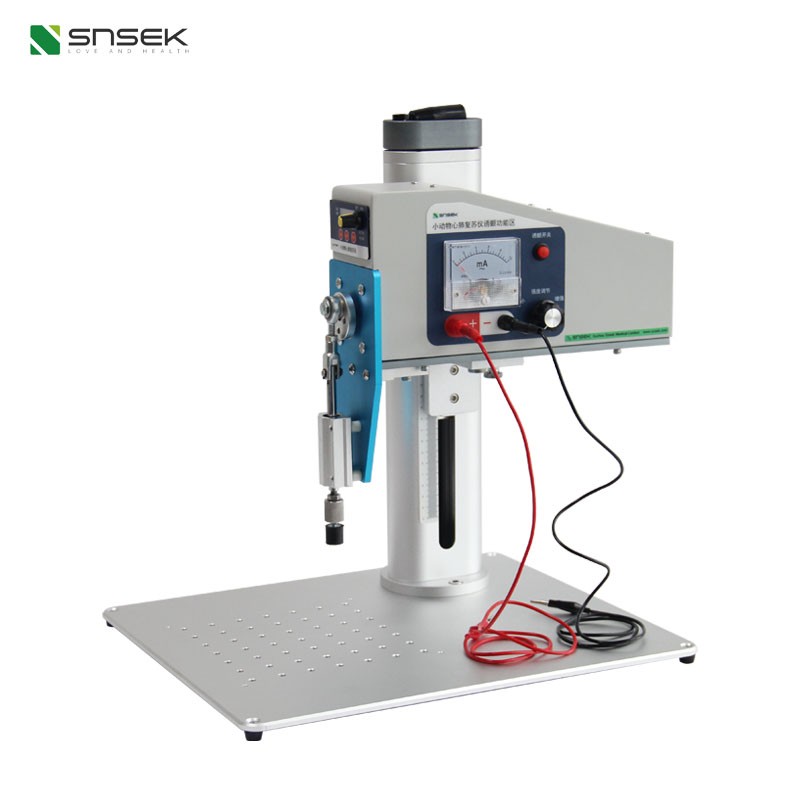

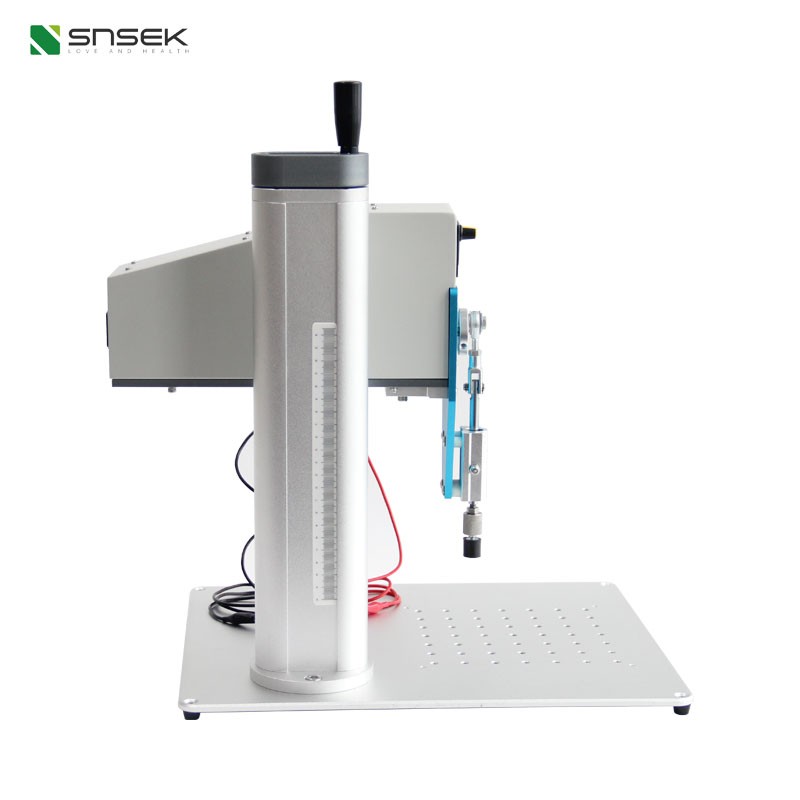

The CRD220 Small Animal Cardiopulmonary Resuscitation (CPR) Instrument is a set of devices for cardiac resuscitation of rats and mice cardiac arrest models. In rats and mice CPR experiments, manual chest compressions are commonly used, but achieving accurate, consistent, and effective external chest compressions can be challenging. This instrument significantly improves the success rate of CPR in rats and mice after cardiac arrest, providing a theoretical basis for external chest compression techniques. It is an essential tool for basic research in cardiopulmonary resuscitation. The device comes with a cardiac induction stimulation function, which truly realizes multiple uses of one device.
Parameters
Description
Pressing method
Mechanical pressing
Adjustment range of pressing frequency
20~220/min
Frequency display
LED
Adjustment step
Infinitely adjustable
Adjustable range of pressing depth
0~45 mm
Motor Voltage
DC24V
Specifications of Press Hammer
Diameter 15, 20, 25mm three kinds of specifications
Material of the pressing hammer
Hard rubber
Operating ratio adjustment
Up and down, rotation, angle adjustable
Vertical and horizontal bar adjustment range
250 mm
Stimulation intensity range for inducing ventricular fibrillation
0~10 mA
Power supply
110 V~220V
Dimensions of mainframe
350×250×140 mm
