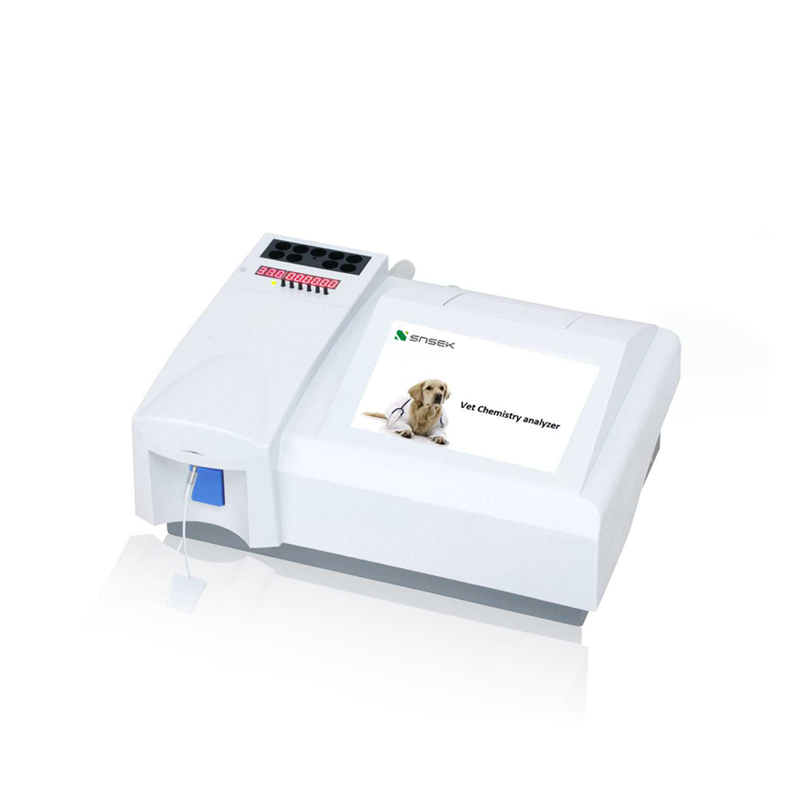

Snsek-SH3200 Vet Semi-auto Chemistry Analyzer

Main Feature

Animal Type: cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep.user-defined settings

7 inch Color LCD , Touch screen

Flow cell and Cuvette test mode compatible

Real time curve showing

7 wavelength , 90 test item pre-programmed

Memory for 10,000 sample results

Light source hibernate function making lamp life longerRS232 interface, PC connecting

10 incubator positions and 3 timers

Specification

Animal Type: cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, user-defined settingsTest mode: Kinetic, End point, Two point, AbsorbanceWavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position WavelengthPrecision: +2 nm, width S 10nm

Absorbance range: 0-4.500 Abs

Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs carry over: < 1%Repeatability CV: < 1%

Sample volume: 0-3000 uL (2500uL recommend) Data Storage: 210000Quality control curve: X SD CV% L-J quality control curve for every test itemFlow cell: 32 uL quartz glass

Lamp: Philips 6V 10W Halogen Lamp with long lifeCPU: ARM series high speed micro CPU

Printer: Internal thermal sensitive printer

Interface: RS-232

Work Environment: Temperature 0°c ~ 40c, Humidity: 80%Power supply: 100-240VAC，50-60Hz100VADimension: 340(L270(W)160(H)

Weight: 5 kg

Usual test list

Liver function:ALT AST ALP TBIL D-BIL TP ALB TTT CHE Nh3

Renal function :BUN CRE UA URE CO2-CP Y-GT

Lipids :T-CHO TG HDL-C LDL-C

Cardiac function :CK CK-MB LDH

lmmune proteins :

IGA IGG IGM C3

Others :

GLU HGB AMS
