SZ-WSS200 Autonomous wheel system
- Product Item : SZ-WSS200 Autonomous wheel system
- Category： Grip&Wheels&Mobility
Brand: Penncentury SNSEK
Model: Snsek-SZ-WSS200

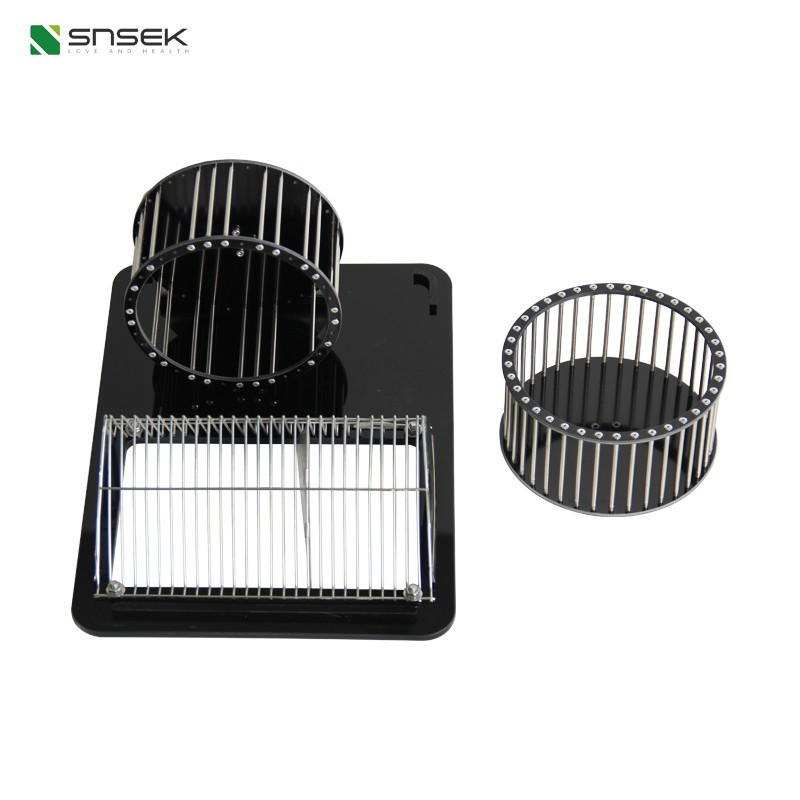

The small animal autonomous activity wheel system uses the spontaneous movement of the animal itself to drive the running wheel to rotate. In this configuration, the information of the long-term activities of the caged animals, such as the running wheel rotation direction, number of revolutions, and total accumulated travel, can be recorded by length meter using an encoder. This device consists of a running wheel assembly, a cage, and a rotation direction and speed sensor. It is an essential tool for studying animal life rhythm experiments. It can also be equipped with a feeder to conduct exercise reward experiments, etc.
|
Parameters |
Description |
|
Parameter display mode |

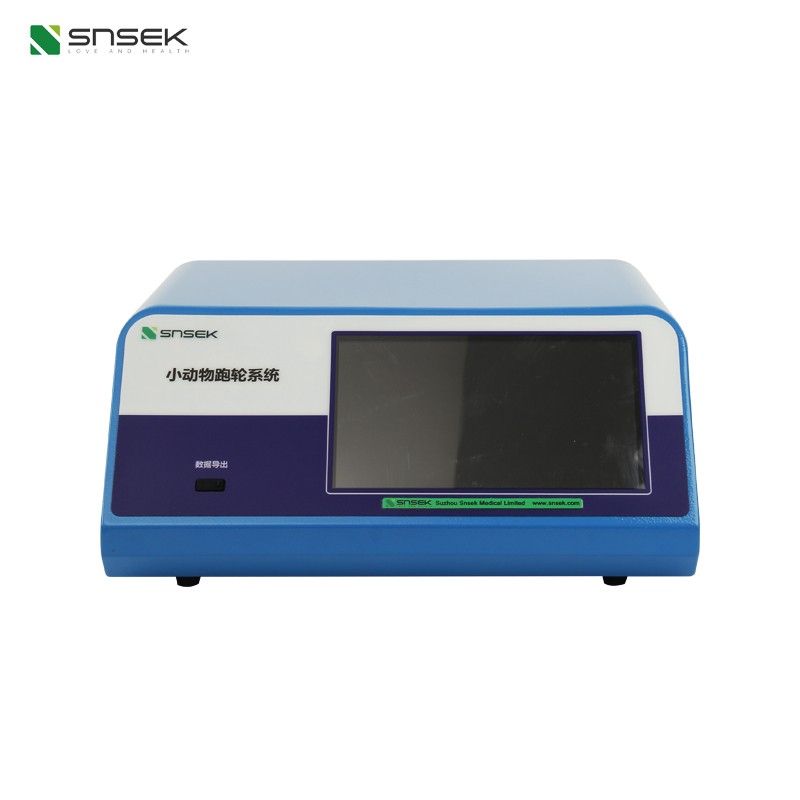

7-inch LCD touch screen |
|
Experimental data |
Experimental time, total distance, total number of laps, clockwise laps, counterclockwise graphs, parameters within unit time period |
|
Experimental time range |
000:00 (hours: minutes) |
|
Encoder resolution |
100P/R |
|
Data storage capacity |
>2000 lines |
|
Data output |
USB, can be exported to USB flash drive |
|
Chassis material |
High-quality alloy |
|

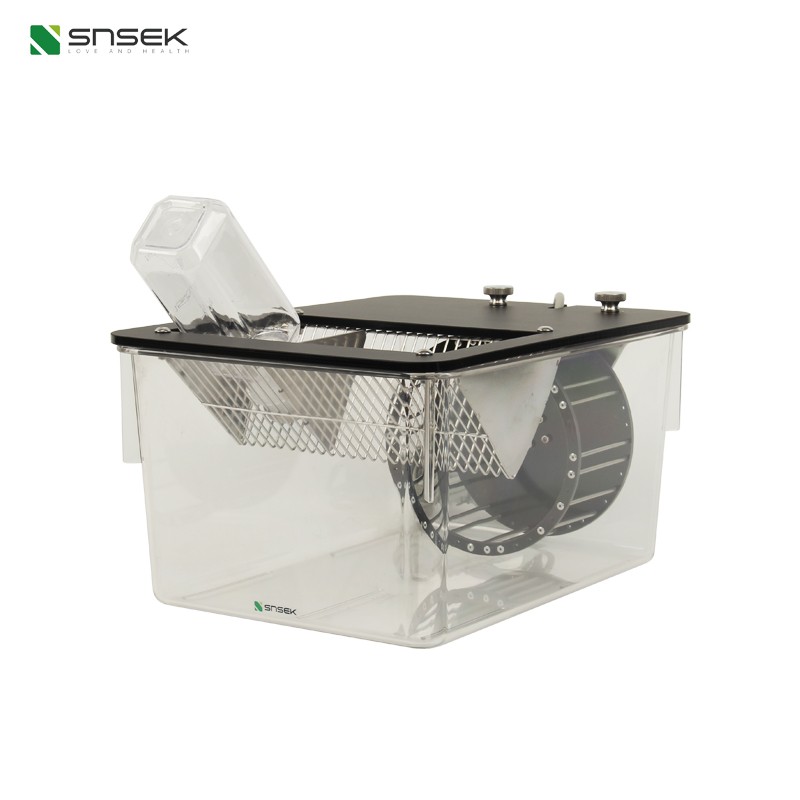

Rat activity cage specifications |
395X260X400mm |
|
Rat roulette specifications |
340X95mm (diameter x thickness) |
|
Mouse activity cage specifications |
315X230X160 |
|
Mouse roulette specifications |
Diameter 114mmX50mm (diameter x thickness) (customizable) |
|
Data recording interval |
1~9999min |
|
Equipment power supply |
110V~220V 50HZ |
