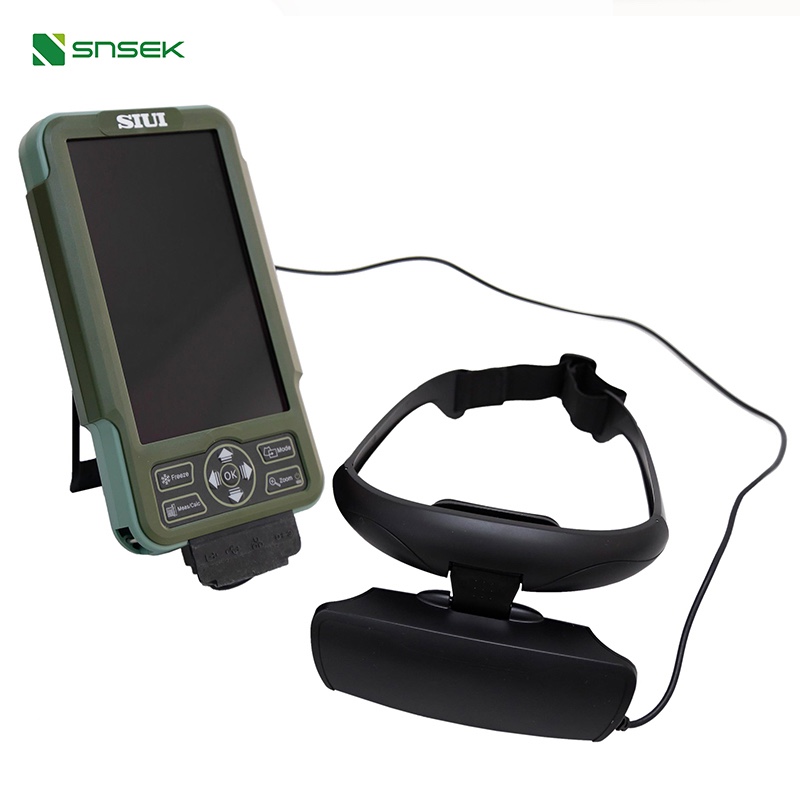

Snsek-CTS800 Vet Handheld Veterinary Ultrasound Machine
- Product Item : Snsek-CTS800 Vet
- Category： Ultrasounds
- Image:B mode
- Probe:1 Probe connectors
- Display:7 inches LCD
- System:handheld type
Main Features:
-Compact Design-Only with a belt, you can free the ultrasound system from a still trolley ortable. Tie the ultrasound system into your body and operate it at anyposition as you like.
-Gravity Sensor
-You can operate the ultrasound system either in transversal layout orvertical layout. It can automatically adapt to two different lavouts when yourotate it.
-Grid for estimation
-With grid on the image area, you can easily estimate the size of the targetsubstance like follicle, fertilized egg, etc.
Specifications
-Monitor: 7-inch WVGA LCD monitor
-Weight: 0.8 kg
-Environmental rating: IP54 (main unit) IP67 (probe head)
-Battery: 3 hours operating time
-Display mode: B, 2B, ZOOM B, B/M,M
-Depth: Max to 250mm
-B gain: 0~100lmage storage: 256 frames
-Cine loop: 256 frameslmage
-Layout: Gravity sensor for layout change(transverse/vertical)Distance, area, circumference, volume.
-Measurement:angle, heart rate
-Probe: L50/7.5 MHz linear rectal probe (Standard)
L65/5.0 MHz linear rectal probe (Optional)
R20/5.0 MHz micro convex probe (Optional)
Probe (Optional)：
-Convex probe
-Linear probe
-Micro-Convex probe
-Linear Rectal
-Backfat linear probe
