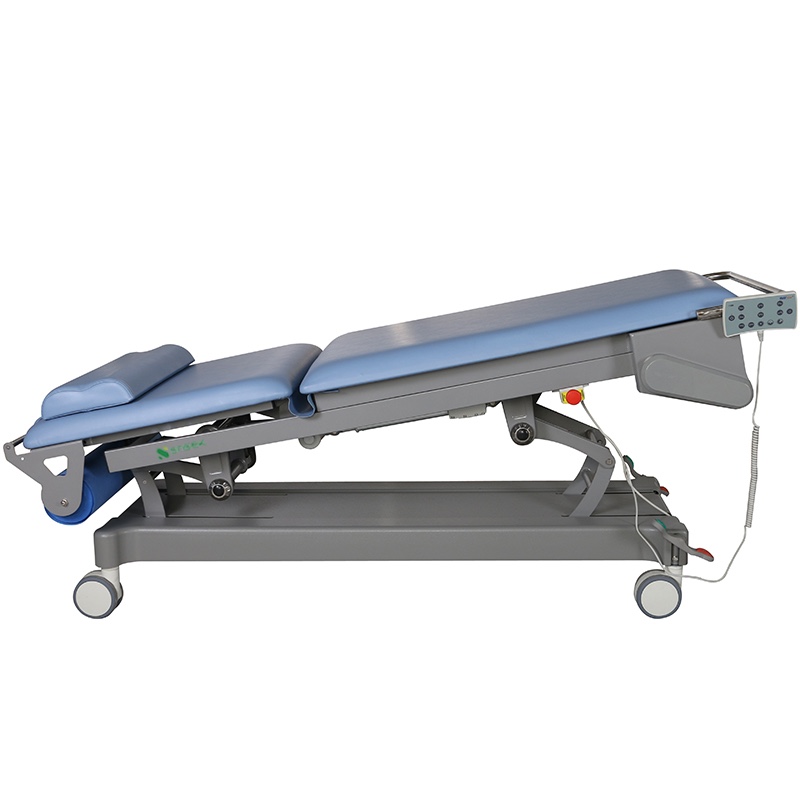

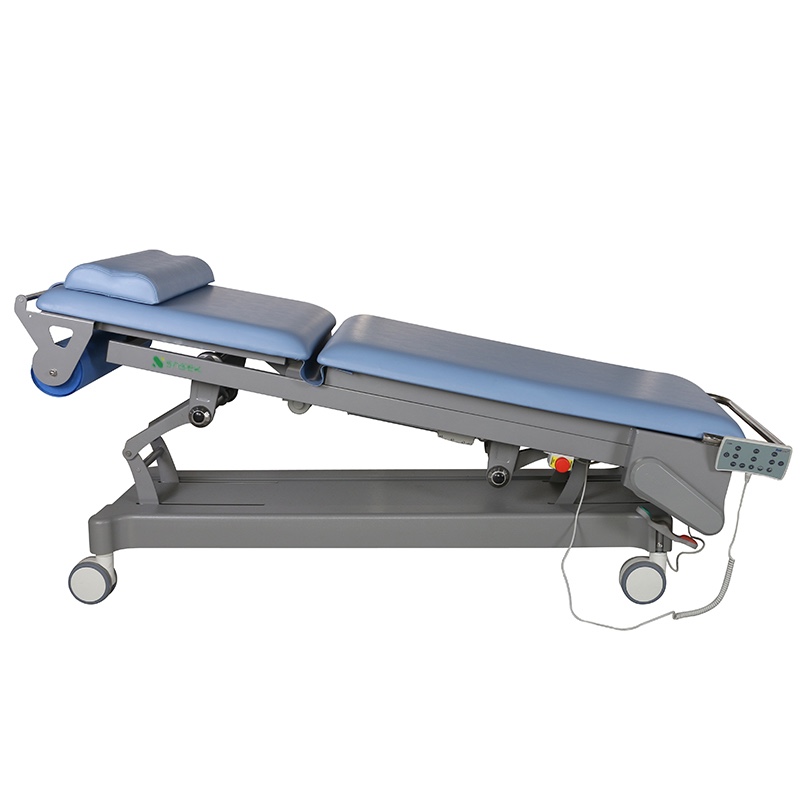

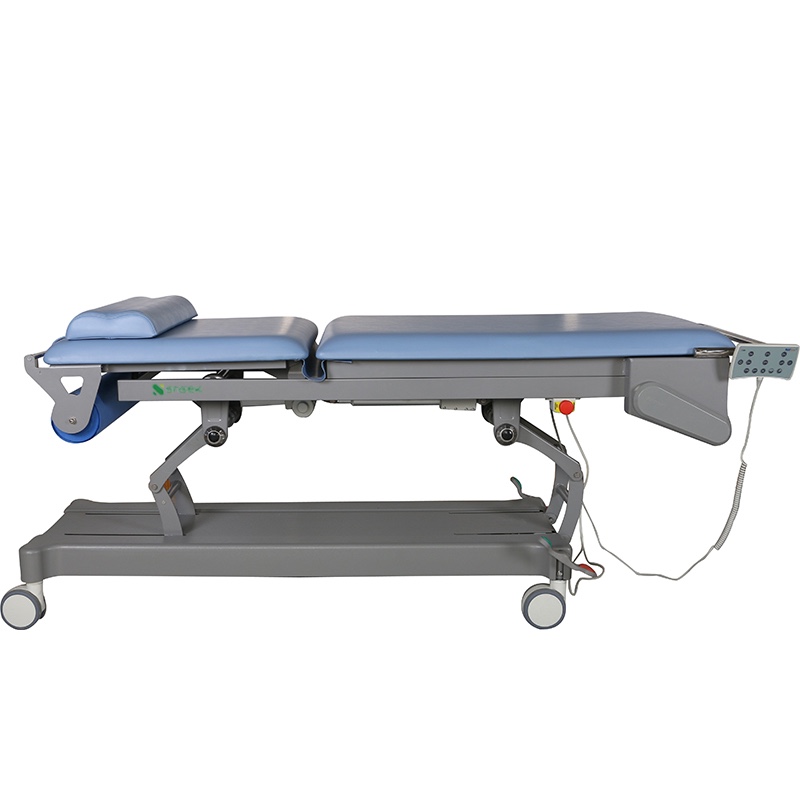

Snsek-SJC7004 Electric Ultrasound Scanning Table With Surface Forward

Main Feature

• Design for body checking , examination assistant equipment according to the principle of ergonomics
• With considerate desion to make sure the disable patient comfortable when inspection proce, and enable the doctor to inspect the patient in anyconvenient direction
• Hand control is equipped with the ease of doctors to operate
• 2inchescastor with brake, flexible and silence movement with wearing quality
• Bed frame , bed base are made of high quality stee, electrostatic painting enhance the elegant looking and corrosion resistance: Mattresses are madeof high quality leather, bright luster and smooth texture
• Adopt the 6 motors control system which is reliable and durable.

• Equipped with disposable medical roll sheet, easy to operate the sheet replacement
• With auto-chanaina sheet and automatic deviation correction function, make heaith problem more satety during the examination
• This internal battery of electric system will turn on automatically when the power supply off


Specification

Overall size	2100*770*620-900 mm
Backrest lifting angle	0-70°±5°
Bed surface forward and backward movement	0-300mm± 10mm
Trendelenburg and Rev Trendelenburg angle	≥12°
Whole Bed Highest Limit Position	900± 10mm
Whole Bed Lowest Limit Position	620± 10mm
Dynamic lift capacity	170kg
Static lift capacity	250kg
N.W	102kg
G.W	127kg
